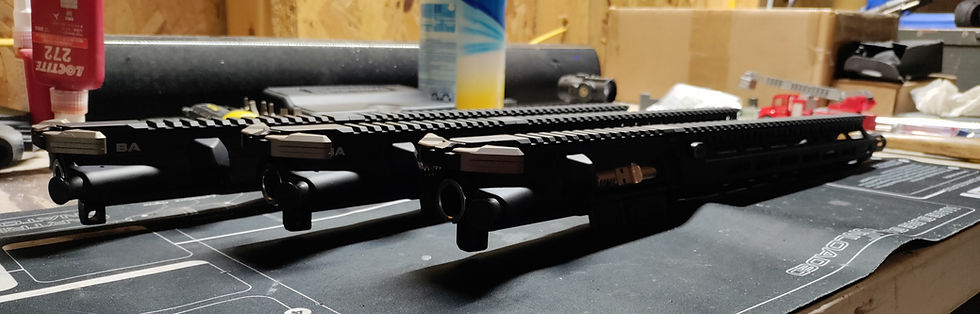

Jaeger L - 14.5" Geissele Custom 5.56

The Jaeger L is for all intents and purposes the Jaeger with a longer barrel. Geissele 14.5" CHF CL barrels are the heart of the build, bringing truly top tier durability, accuracy, and shootability in a do-it-all length. BCM 7-sided Mlock rails provide a rock solid attachment for any and all accessories you could ever want. In the back end of the build we have a NIB BCG and the Aero Breach charging handle. You cannot buy a better upper for less money anywhere on the market.



KAK extended A2 Flash Hider P&W - Standard

KAK 4-Prong Flash Hider P&W - Free

KAK M58 Flash Hider P&W - Free

SOLGW Nox P&W - $100

*Any Other Muzzle Device - Dealer Cost



Just let me know which one you want in the order notes.



The Basics



14.5" Geissele 5.56 CHF CL Barrel, BCM 13.4" MCMR Mlock Handguard, NIB BCG, BA Mil-Spec Upper, and Aero Breach Charging Handle in FDE



The Specifics



Barrel:

Manufacturer - Geissele

Length/Chamber - 14.5" 5.56

Twist - 1:7 Twist

Material - 4140 HT Cold Hammer forged Chrome Lined

Profile - Custom

Gas System - Mid

Finish - Phosphate/Chrome

Thread Pitch - 1/2x28

Gas Port - .079

Weight - 23.8oz

*Dimpled*

*Set with Rockset*



1st Rebarrel - FREE



All NFA/ATF Rules Apply



Barrel nut is sequentially torqued down to 50 FT-lbs. Starting at 25, then 35, and then finally 50 FT-lbs to ensure proper mating of the threads.



Barrel is also bedded to the upper receiver with an expanding/hardening compound to ensure perfect fit and reliable accuracy.



If you legit burn out a barrel, like 10,000 -25,000 rounds, and the barrel becomes inaccurate I will rebarrel it for you for free. Good luck.





Bolt Carrier Group:

Bolt Material - 9310 MPI

Carrier Material - 8620 Alloy

Gas Key Material - 4130 Alloy

Profile - Full Auto

Finish - NIB

Gas Key Screws - Grade 8 (torqued and staked to Mil-Spec)

Forward Assist Cuts

Mil-Spec Firing Pin (Hard Chrome Coated)



Handguard:

Manufacturer - Bravo Company USA

Length - 13.4"

Material - 6061 T6 Aluminum

Finish - Hard Coat Black Anodization

Mounting Platform - 7-Sided Mlock

Barrel Nut - Steel (does not require timing)

Wedge Lock Torquing System Ensures a Rock Solid Rail



Barrel nut torqued to 50 FT-lbs

Handguard screws secured with blue Loctite

We apply a Permatex Anti-Seize solution to the receiver extension before installing the barrel nut to ensure they do not lock up over many years of hard use.





Upper Receiver:

BA Mil-Spec Upper

Material - 7075 T6 Forged Aluminum

Finish - Type 3 Hardcoat Anodized Black

Standard Forward Assist

Standard Dust Cover

M4 Feed Ramps



Charging Handle:

Manufacturer: Aero Precision Breach Large Latch

Material: 7075 T6 Aluminum

Finish - Type 3 Hardcoat Anodized

Extras - Machined in cuts to deflect gas when shooting suppressed.



Gas Block:

Material - 4140 HT Steel

Style - Low Profile

Size - .750"

Attachment Method - 2x Set Screws

Not Adjustable

Dimpled to barrel



Set screws are torqued to 30 IN-lbs and have Rockset applied for ultimate security.



*Please contact me before attempting removal of the Gas Block. These are not meant to be tampered with.





Gas Tube:

Length - Mid

Material - Stainless Steel



Flash Hider:

KAK A2 Extended Flash Hider (Standard)

Thread Pitch - 1/2x28

Caliber - .223/5.56

Jaeger L - 14.5" Geissele Custom 5.56

SKU: Jaeger-L
$750.00Price
Out of Stock
  • These are assembled by me by hand as well as transported back and forth from the range from test firing. Becuase of the handling of the uppers there will be some very minor cosmetic blemishes. If you are looking for a showroom finish, please look elsewhere. I expect my uppers to be used harshly and to handle the abuse. Any issues with function will be immediately addressed and remedied to the satasfaction of the customer.
